Just playing around with Oracle Storage Cloud and tried to install the appliance which enabled access to the cloud storage per NFS (otherwise you would have to use APIs).
Prerequisites:
Oracle Linux 7 with UEK Release 4 or later
Docker 1.8.3 or later
NFS version 4.0 or later

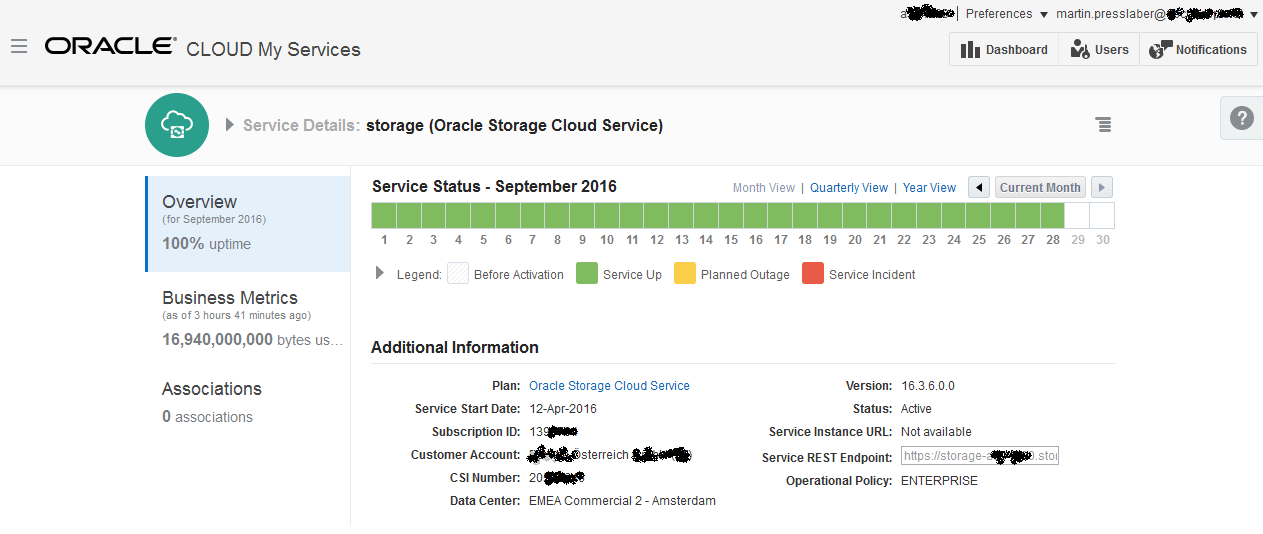

And yes, for sure an active Oracle Storage Cloud subscription
Ok, installed an Oracle VM and gave it a try:
[root@OL7mpress01 ~]# uname -a Linux OL7mpress01 4.1.12-61.1.6.el7uek.x86_64 #2 SMP Thu Aug 18 21:55:17 PDT 2016 x86_64 x86_64 x86_64 GNU/Linux [root@OL7mpress01 ~]# yum install docker-engine-1.8.3-1.0.2.el7.x86_64 Loaded plugins: langpacks, rhnplugin, ulninfo This system is receiving updates from ULN. [...] Installed: docker-engine.x86_64 0:1.8.3-1.0.2.el7 Dependency Installed: audit-libs-python.x86_64 0:2.4.1-5.el7 checkpolicy.x86_64 0:2.1.12-6.el7 docker-engine-selinux.noarch 0:1.12.0-1.0.2.el7 libsemanage-python.x86_64 0:2.1.10-18.el7 policycoreutils-python.x86_64 0:2.2.5-20.0.1.el7 python-IPy.noarch 0:0.75-6.el7 setools-libs.x86_64 0:3.3.7-46.el7 Complete! [root@OL7mpress01 ~]# [root@OL7mpress01 ~]# systemctl reboot [...] [root@OL7mpress01 ~]# groupadd docker [root@OL7mpress01 ~]# useradd docker-test -m [root@OL7mpress01 ~]# usermod -a -G docker docker-test [root@OL7mpress01 ~]# passwd docker-test Changing password for user docker-test. [root@OL7mpress01 ~]# systemctl start docker [root@OL7mpress01 ~]# systemctl enable docker Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service. [root@OL7mpress01 ~]# yum install nfs-utils [...] [root@OL7mpress01 ~]# systemctl start rpcbind [root@OL7mpress01 ~]# systemctl start nfs-server [root@OL7mpress01 ~]# systemctl enable rpcbind [root@OL7mpress01 ~]# systemctl enable nfs-server Created symlink from /etc/systemd/system/multi-user.target.wants/nfs-server.service to /usr/lib/systemd/system/nfs-server.service. [root@OL7mpress01 ~]# su - docker-test [docker-test@OL7mpress01 ~]$ docker info Containers: 0 Images: 0 Storage Driver: devicemapper Pool Name: docker-251:0-551720-pool Pool Blocksize: 65.54 kB Backing Filesystem: xfs Data file: /dev/loop0 Metadata file: /dev/loop1 Data Space Used: 1.821 GB Data Space Total: 107.4 GB Data Space Available: 46.23 GB Metadata Space Used: 1.479 MB Metadata Space Total: 2.147 GB Metadata Space Available: 2.146 GB Udev Sync Supported: true Deferred Removal Enabled: false Data loop file: /var/lib/docker/devicemapper/devicemapper/data Metadata loop file: /var/lib/docker/devicemapper/devicemapper/metadata Library Version: 1.02.107-RHEL7 (2016-06-09) Execution Driver: native-0.2 Logging Driver: json-file Kernel Version: 4.1.12-61.1.6.el7uek.x86_64 Operating System: Oracle Linux Server 7.2 CPUs: 2 Total Memory: 15.42 GiB Name: OL7mpress01 ID: MROP:4OV3:WKNM:MQ3A:274N:EZ23:2SZQ:JHM5:GMQP:5EHC:BTS6:NMED [docker-test@OL7mpress01 oscsa-onprem]$ df -h Filesystem Size Used Avail Use% Mounted on devtmpfs 7.7G 0 7.7G 0% /dev tmpfs 7.8G 0 7.8G 0% /dev/shm tmpfs 7.8G 17M 7.7G 1% /run tmpfs 7.8G 0 7.8G 0% /sys/fs/cgroup /dev/mapper/ol-root 50G 7.0G 44G 14% / /dev/xvda1 497M 216M 281M 44% /boot /dev/mapper/ol-home 42G 33M 42G 1% /home tmpfs 1.6G 0 1.6G 0% /run/user/0 tmpfs 1.6G 0 1.6G 0% /run/user/1001 [docker-test@OL7mpress01 ~]$ cd oscsa-onprem [docker-test@OL7mpress01 oscsa-onprem]$ sudo ./oscsa-install.sh -p http://proxy.serverbla.at:3128 -a data args: -v /oscsa/cache:/usr/share/oracle/ -v /oscsa/md:/usr/share/oracle/system/ -v /oscsa/logs:/var/log/gateway ************************************* Imported temporary env vars from docker-test to this install session ************************************* Checking that docker is installed and using the correct version Pass found docker version Docker version 1.8.3, build aa9b234 ************************************* Checking host prerequisites ************************************* Detected linux operating system Checking kernel version Pass kernel version 4.1.12-61.1.6.el7uek.x86_64 found Checking NFS version Pass found NFS version 4 ************************************* All prerequisites have been met ************************************* ************************************* Begin install ************************************* Enter the install location press enter for default (/opt/oscsa_gateway/) : Installing to destination /opt/oscsa_gateway/ Copied install scripts Copied OSCSA image Starting configuration script Enter the mount location for data cache /oscsa/cache Enter the mount location for meta data /oscsa/md Enter the mount location for log file information /oscsa/logs Enter the docker network mode (host or bridge), Hitfor the default bridge mode. Enter the host port to use for the Administrative Web Interface. Hit to use dynamic port mapping Enter the host port to use for NFS access. Hit to use dynamic port mapping Enter the host port to use for the optional HTTP REST service. Hit to use dynamic port mapping Writing configuration Importing image Please run 'oscsa up' to start the software appliance ************************************* For additional details, please see (/opt/oscsa_gateway/OSCSA_GATEWAY_README.txt) file ************************************* [docker-test@OL7mpress01 oscsa-onprem]$ sudo firewall-cmd --state [sudo] password for docker-test: running [docker-test@OL7mpress01 oscsa-onprem]$ sudo firewall-cmd --zone=public --add-port=32774/tcp --permanent success [docker-test@OL7mpress01 oscsa-onprem]$ sudo firewall-cmd --zone=public --add-port=32775/tcp --permanent success [docker-test@OL7mpress01 oscsa-onprem]$ sudo firewall-cmd --zone=public --add-port=32776/tcp --permanent success [docker-test@OL7mpress01 oscsa-onprem]$ sudo firewall-cmd --reload success [docker-test@OL7mpress01 oscsa-onprem]$ [docker-test@OL7mpress01 oscsa-onprem]$ time ./oscsa up data args: -v /oscsa/cache:/usr/share/oracle/ -v /oscsa/md:/usr/share/oracle/system/ -v /oscsa/logs:/var/log/gateway Creating OSCSA Volume Applying configuration file to container Starting OSCSA [oscsa_gw:1.0.11] Setting up config file port with nfs Setting up config file port with admin Setting up config file port with rest Management Console: https://OL7mpress01:32769 If you have already configured an OSCSA FileSystem via the Management Console, you can access the NFS share using the following port. NFS Port: 32770 Example: mount -t nfs -o vers=4,port=32770 OL7mpress01:/ /local_mount_point real 0m19.945s user 0m0.875s sys 0m1.063s [docker-test@OL7mpress01 oscsa-onprem]$

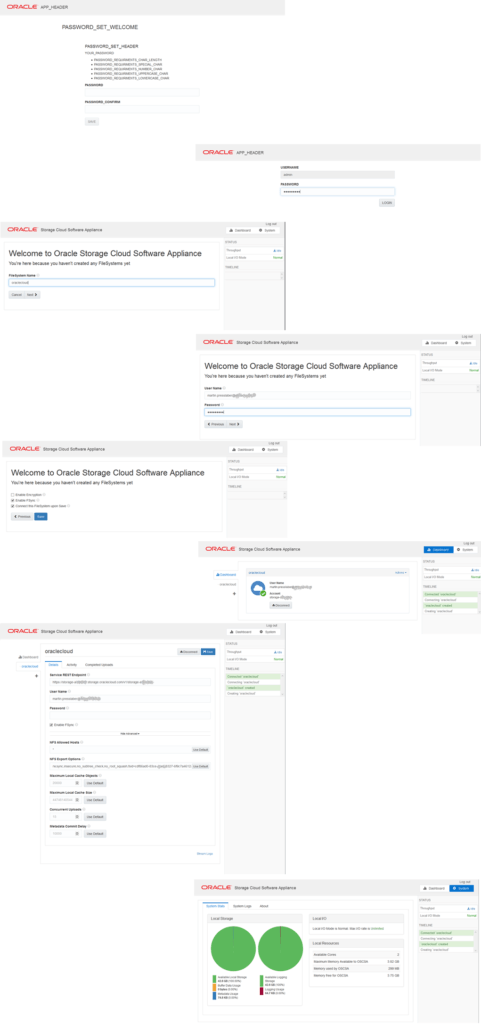

Now I could use a BUI:
Now let’s try it with a client:
root@psvsparc1:~ # uname -a
SunOS psvsparc1 5.11 11.3 sun4v sparc SUNW,SPARC-Enterprise-T5120
root@psvsparc1:~ # mkdir /oraclecloud
root@psvsparc1:~ # mount -F nfs -o vers=4,port=32770 10.52.72.82:/oraclecloud /oraclecloud/
root@psvsparc1:~ # df -h /oraclecloud
Filesystem Size Used Available Capacity Mounted on
10.52.72.82:/oraclecloud
8.0T 4.0T 4.0T 50% /oraclecloud
root@psvsparc1:~ #
root@psvsparc1:~ # ls -alh /downloads/EIS*iso
-rw-r--r-- 1 root root 7.4G Aug 29 12:28 /downloads/EIS-DVD-ONE-08JUN16.iso
-rw-r--r-- 1 root root 7.6G Aug 29 12:29 /downloads/EIS-DVD-TWO-08JUN16.iso
root@psvsparc1:~# time cp /downloads/EIS-DVD-* /oraclecloud/
real 27m54.958s
user 0m0.032s
sys 6m36.771s
root@psvsparc1:~#
root@psvsparc1:~# bc
15*1024/28/60
9
So that’s arount 9 MB/s and that’s ok… I am not alone in the company 🙂
root@psvsparc1:~# speedtest-cli Retrieving speedtest.net configuration... Retrieving speedtest.net server list... Testing from next layer (92.60.12.82)... Selecting best server based on latency... Hosted by NEXT LAYER GmbH (Vienna) [1.07 km]: 1800000.0 ms Testing download speed........................................ Download: 563.94 Mbit/s Testing upload speed.................................................. Upload: 69.71 Mbit/s root@psvsparc1:~#
